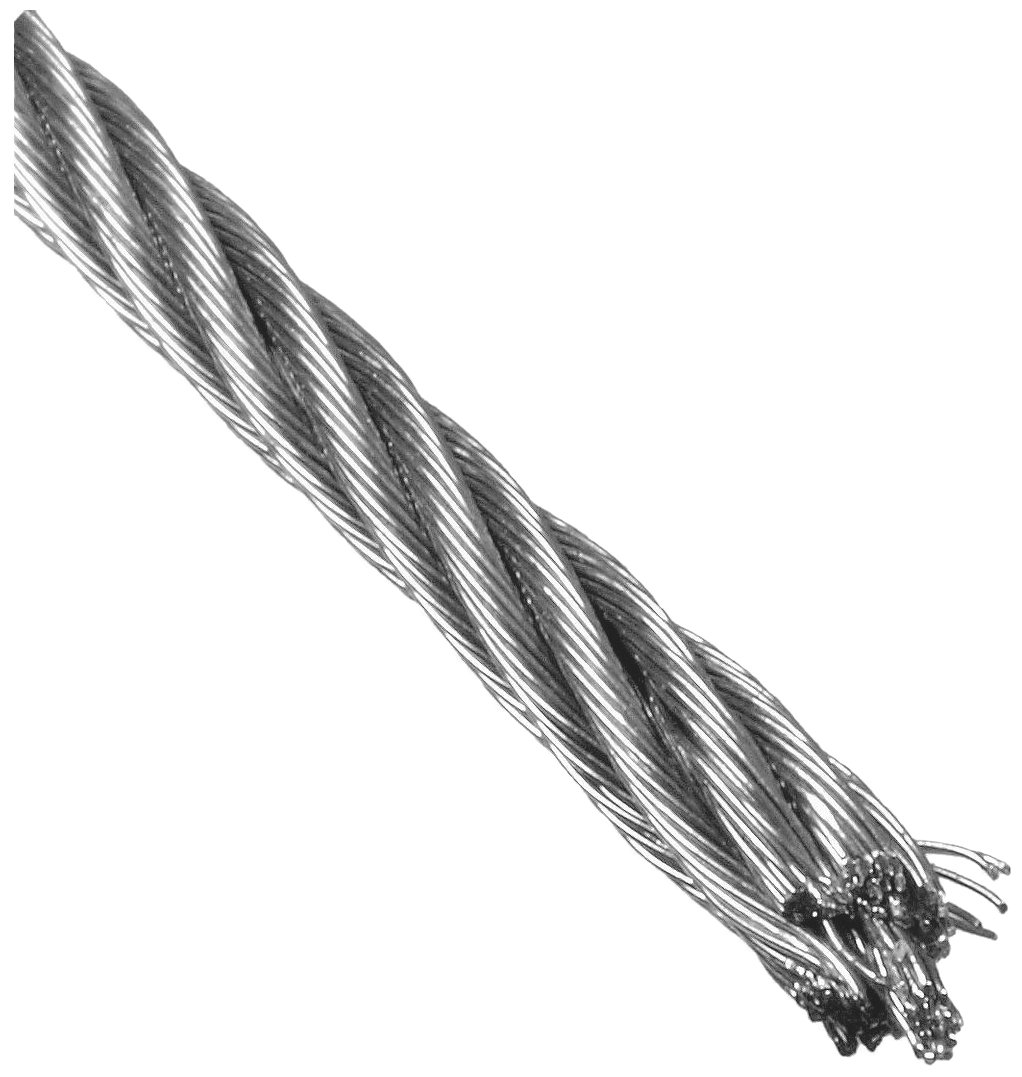

Stainless Steel 316 Wire Rope, 7x19 Strands, 1/8" OD, 250' Length, 1300 lbs Breaking Strength

Image is representative of the product family.

How can we improve our images or Product Specifications

See all products in this Product Family: Stainless Steel 316 Wire Rope 7x19 Standard Construction

Be the first to review this item

ASIN B0013HEO4W

Product Specifications

Breaking Strength: 1300 pounds
Diameter: 1/8 inches
Exterior Finish: Corrosion-Resistant Coating
Length: 250 feet

Material Type: Stainless Steel 316
Standard Construction: 7x19
System of Measurement: Inch

Specification for this product family (See all products)

Brand Name: Loos & Co.

Part Number: 123

Number of Items: 1

Currently unavailable. We don't know when or if this item will be back in stock.

This item is no longer available

Add to My Projects

Stainless Steel 316 Wire Rope, 7x19 Strands, 1/8" OD, 250' Length, 1300 lbs Breaking Strength

Key Features

Stainless steel 316 is more corrosion-resistant than 304, due to the addition of molybdenum in the alloy
Stainless steel 316 is also called marine grade stainless steel because of its chloride corrosion resistance
7x19 strand core has seven strands of wire rope with nineteen wires in each strand, formed helically around a strand core
7x19 strand core is strong, and more flexible and fatigue-resistant than the 7x7 class construction
This wire rope can be used over pulleys, rigging, winches, in exercise equipment, and garage door mechanics

Package Details

Shipping Weight: 8.11 pounds

Product Description

Stainless steel 316 wire rope with 7x19 standard construction can be used over pulleys, rigging, winches, in exercise equipment, and garage door mechanics. Stainless steel 316 is more corrosion-resistant than 304, due to the addition of molybdenum in the alloy. Stainless steel 316 is also called marine grade stainless steel because of its chloride corrosion resistance. 7x19 strand core has seven strands of wire rope with nineteen wires in each strand, formed helically around a strand core. 7x19 strand core is strong, and more flexible and fatigue-resistant than 7x7 class construction.

Wire rope, also called wire cable, is an assembly of wire strands formed helically around a central core. It is used for pulling, lifting, rigging, hoisting, and motion-control applications most commonly found in the manufacturing, marine, oil, mining, fiber-optics, aircraft, automotive accessory, and construction industries. A combination of characteristics including material, finish, construction, diameter, length, and breaking strength combines to give each rope its performance ability. Wire rope materials are selected for properties such as strength, elasticity, conductivity, and chemical- and weather-resistance. For strength purposes, most wire rope is made of bright (uncoated or bare) wire. However, it is also produced in a variety of finishes, such as polypropylene (PE), vinyl (PVC), or nylon. These coatings can increase overall durability and strength, and allow for specific use. The breaking strength for wire rope is the strength at which new wire rope will fail under a stationary load. Breaking strength is not considered safe working load (SWL) limit.
