Stainless Steel 304 Wire Rope, 1 x 19 Strands, 1/8" OD, 100' Length, 2100 lbs Breaking Strength

Image is representative of the product family.

How can we improve our images or Product Specifications

See all products in this Product Family: Stainless Steel 304 Wire Rope 1x19 Standard Construction

Be the first to review this item

ASIN B0013HCE9O

Product Specifications

Breaking Strength: 2100 pounds
Diameter: 1/8 inches
Exterior Finish: Bright
Length: 100 feet

Material Type: Stainless Steel 304
Standard Construction: 1x19
System of Measurement: Inch

Specification for this product family (See all products)

Brand Name: Loos & Co.

Part Number: 123

Number of Items: 1

Currently unavailable. We don't know when or if this item will be back in stock.

This item is no longer available

Add to My Projects

Stainless Steel 304 Wire Rope, 1 x 19 Strands, 1/8" OD, 100' Length, 2100 lbs Breaking Strength

Key Features

Stainless steel 304 (18-8) is corrosion-resistant, and withstands high temperatures for a wide range of operation
Stainless steel 304 is a versatile material, commonly used in a wide variety of applications, and in saline atmospheres

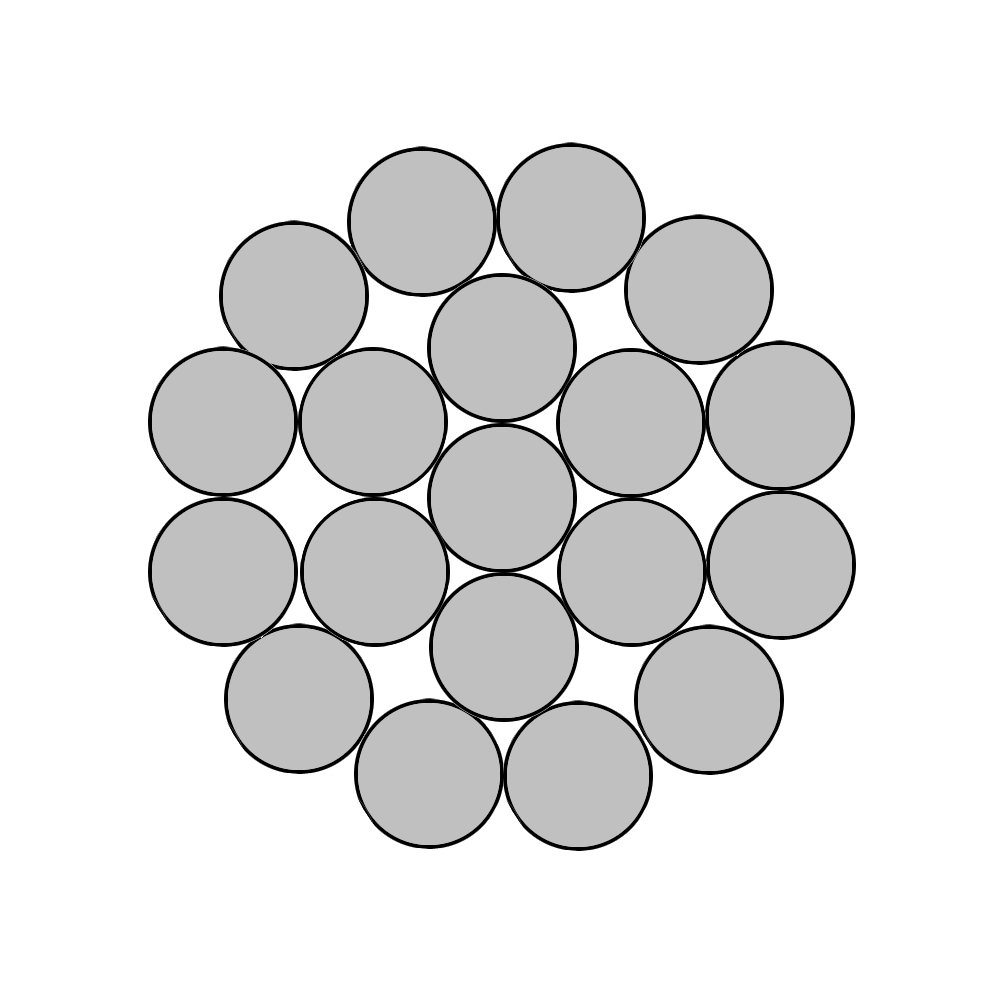

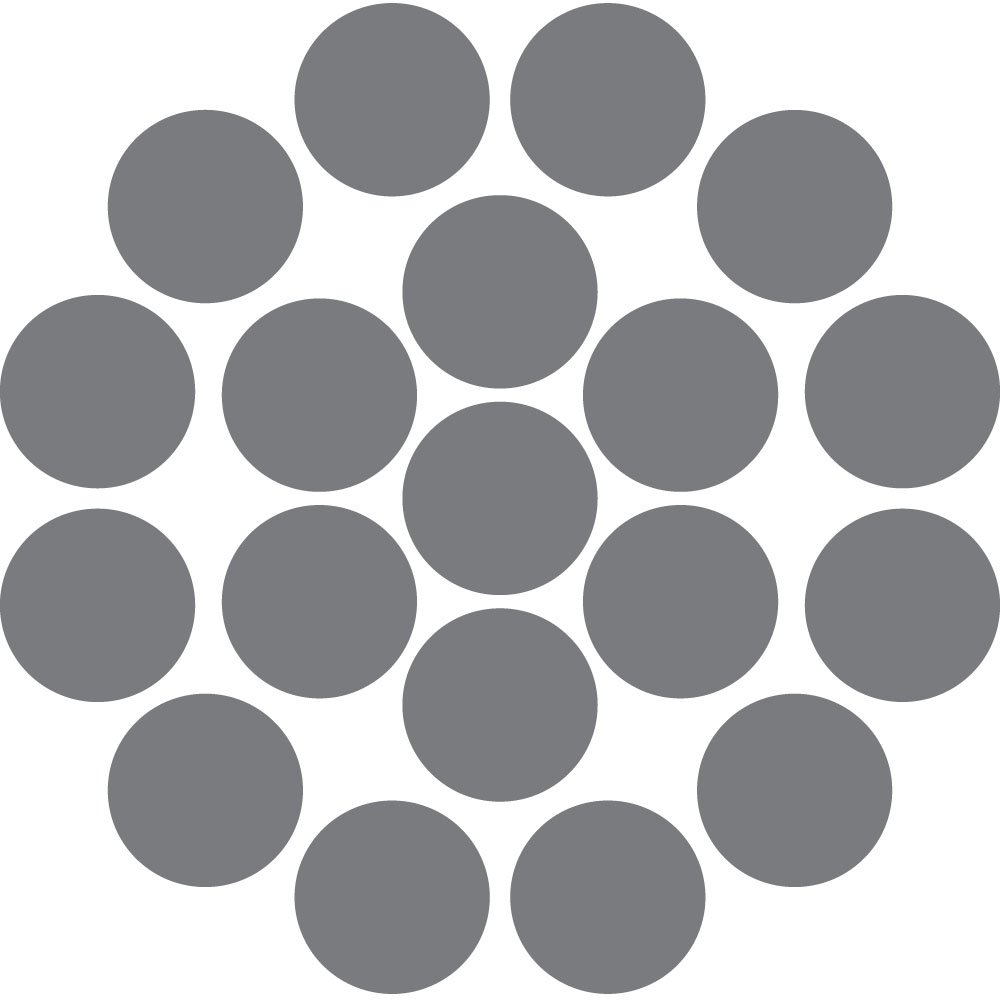

1x19 strand core has one strand of wire rope with 19 wires in each strand, formed helically around a strand core
1x19 strand core offers abrasion-resistance and is minimally flexible
This wire rope can be used for rigging, hoisting, push-pull, and guying applications

Package Details

Shipping Weight: 3.36 pounds

Product Description

Stainless steel 304 wire rope with 1x19 standard construction is used for rigging, hoisting, push-pull, and guying applications. Stainless steel 304, also called 18-8, is corrosion-resistant, and withstands high temperatures for a wide range of operation. Stainless steel 304 is a versatile material, commonly used in a wide variety of applications, and in saline atmospheres. 1x19 strand core has one strand of wire rope with nineteen wires in each strand, formed helically around a strand core. 1x19 strand core offers abrasion-resistance, and is minimally flexible.

Wire rope, also called wire cable, is an assembly of wire strands formed helically around a central core. It is used for pulling, lifting, rigging, hoisting, and motion-control applications most commonly found in the manufacturing, marine, oil, mining, fiber-optics, aircraft, automotive accessory, and construction industries. A combination of characteristics including material, finish, construction, diameter, length, and breaking strength combines to give each rope its performance ability. Wire rope materials are selected for properties such as strength, elasticity, conductivity, and chemical- and weather-resistance. For strength purposes, most wire rope is made of bright (uncoated or bare) wire. However, it is also produced in a variety of finishes, such as polypropylene (PE), vinyl (PVC), or nylon. These coatings can increase overall durability and strength, and allow for specific use. The breaking strength for wire rope is the strength at which new wire rope will fail under a stationary load. Breaking strength is not considered safe working load (SWL) limit.
