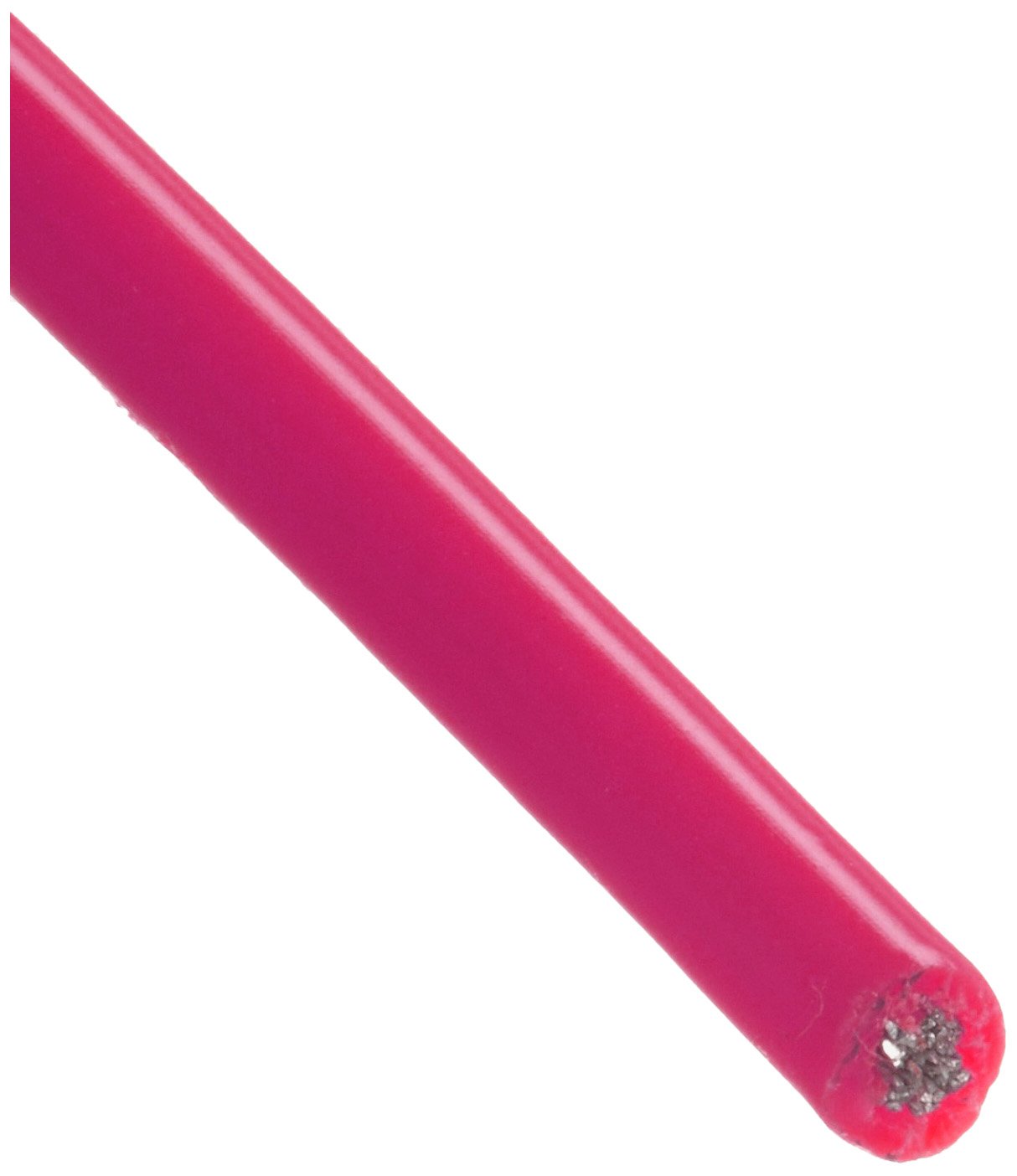

Nylon Coated Stainless Steel 18-8 Wire Rope 7x7 Standard Construction Red Color
Be the first to review this item
ASIN B0013HEN7U
Product Specifications
- Breaking Strength
- 920 pounds
- Diameter
- 3/16 inches
- Exterior Finish
- Nylon Coated
- Length
- 50 feet
- Material Type
- Stainless Steel
- Standard Construction
- 7x7
- System of Measurement
- Inch
Specification for this product family (See all products)
- Brand Name
- Loos & Co.
- Part Number
- 123
- Number of Items
- 1
In Stock (1)
Free Two-Day Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply)
Details.
Want it delivered on Tuesday, February 7? Order in-stock items in the next 1 day 10 hours 57 minutes and choose One-Day Shipping at checkout.
Stainless Steel 18-8 Nylon Coated Wire Rope, 7x7 Strands, 3/32" Cable Diameter, 3/16" Coated OD, 50' Length, 920 lbs Breaking Strength, Red
Key Features
- Red-colored wire rope for ease of recognition
- Stainless steel 18-8 is corrosion-resistant, and withstands high temperatures for a wide range of operation
- Stainless steel is a versatile material, commonly used in a wide variety of applications, and in saline atmospheres
- Nylon coating has excellent abrasion-resistance, and resists crushing and cracking
- 7x7 strand core is stronger but less flexible than 6x19 and 6x36 class constructions
Package Details
Shipping Weight: 1.36 pounds
Product Description
Nylon-coated, stainless steel wire rope with 7x7 standard construction is commonly used in pulleys, and in aircraft and automotive controls. This wire rope is red-colored for ease of recognition. Stainless steel 304, also called 18-8, is corrosion-resistant, resists scaling, and withstands high temperatures for a wide range of operation. Stainless steel is a versatile material, commonly used in a wide variety of applications, and in saline atmospheres. Nylon coating is very strong, lightweight, and flexible, has excellent abrasion-resistance, and resists crushing and cracking. 7x7 strand core has seven strands of wire rope with seven wires in each strand formed helically around a strand core. 7x7 strand core is stronger but less flexible than 6x19 and 6x36 class constructions.
Wire rope, also called wire cable, is an assembly of wire strands formed helically around a central core. It is used for pulling, lifting, rigging, hoisting, and motion-control applications most commonly found in the manufacturing, marine, oil, mining, fiber-optics, aircraft, automotive accessory, and construction industries. A combination of characteristics including material, finish, construction, diameter, length, and breaking strength combines to give each rope its performance ability. Wire rope materials are selected for properties such as strength, elasticity, conductivity, and chemical- and weather-resistance. For strength purposes, most wire rope is made of bright (uncoated or bare) wire. However, it is also produced in a variety of finishes, such as polypropylene (PE), vinyl (PVC), or nylon. These coatings can increase overall durability and strength, and allow for specific use. The breaking strength for wire rope is the strength at which new wire rope will fail under a stationary load. Breaking strength is not considered safe working load (SWL) limit.
