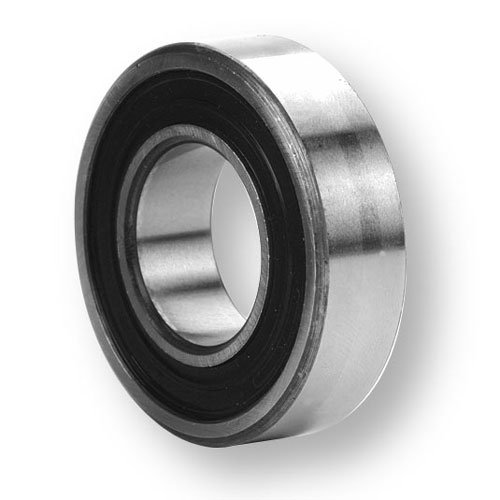

Nice Ball Bearing 3014DC Double Sealed, 52100 Bearing Quality Steel, 0.3750" Bore x 1.1250" OD x 0.3750" Width
Be the first to review this item
ASIN B0034G64SE
Specifications for this item
- Bearing Number
- 3014DCTNTG18
- Bearing Width
- 0.3750 inches
- Bore Diameter
- 0.3750 inches
- Bore Diameter Tolerance
- + .005 / - .000 inches
- Brand Name
- Nice
- Dynamic Load Capacity
- 475 pounds
- EAN
- 0637400292140
- Exterior Finish
- Chrome Steel
- Material Type
- 52100 Bearing Quality Steel
- Maximum Rotational Speed
- 2500 RPM
- Number of Items
- 1
- Outside Diameter
- 1.1250 inches
- Outside Diameter Tolerance
- + .0000 / - .0005 inches
- Part Number
- 3014DCTNTG18
- Static Load Capacity
- 600 pounds
- System of Measurement
- Inch
- UPC
- 637400292140
In Stock (6)
Free Two-Day Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply)
Details.
Want it delivered on Tuesday, February 7? Order in-stock items in the next 1 day 10 hours 17 minutes and choose One-Day Shipping at checkout.
Key Features
- Precision ground ball grooves for smooth rotation
- Pregreased with metered Shell Alvania #2 grease
- Double sealed to keep grease in and dirt out
- Suitable for medium speed applications of up to 2500 rpm
- Standard design for maximum application versatility
Package Details
Shipping Weight: 0.05 pounds
Product Description
Semi-ground 3000 Series bearings are designed for adaptation to a majority of precision bearing applications. Careful heat treatment provides a uniform and exact degree of hardness for maximum life. The 3000 Series bearings are precision ground to close tolerances on the O.D. (Outside Diameter) with exceptional care given to the ball grooves. The bore is semi-ground. A ball retainer, or separator, is used to increase the range of allowable speeds by reducing ball-to-ball contact friction. RBC Nice Bearings is a subsidiary of RBC Bearings. RBC Bearings has been providing bearing solutions to our customers since 1919. A publicly-traded company (NASDAQ: ROLL), RBC currently has 23 manufacturing facilities worldwide, with 18 located in the USA.
