Galvanized Iron Wire Rope 6x7 Standard Construction
Be the first to review this item
ASIN B0013HGL20
Product Specifications
- Breaking Strength
- 500 pounds
- Diameter
- 1/8 inches
- Exterior Finish
- Zinc Galvanized
- Length
- 250 feet
- Material Type
- Iron
- Standard Construction
- 6x7
- System of Measurement
- Inch
Specification for this product family (See all products)
- Brand Name
- Small Parts
- Part Number
- 123
- Number of Items
- 1
Currently unavailable. We don't know when or if this item will be back in stock.
This item is no longer available

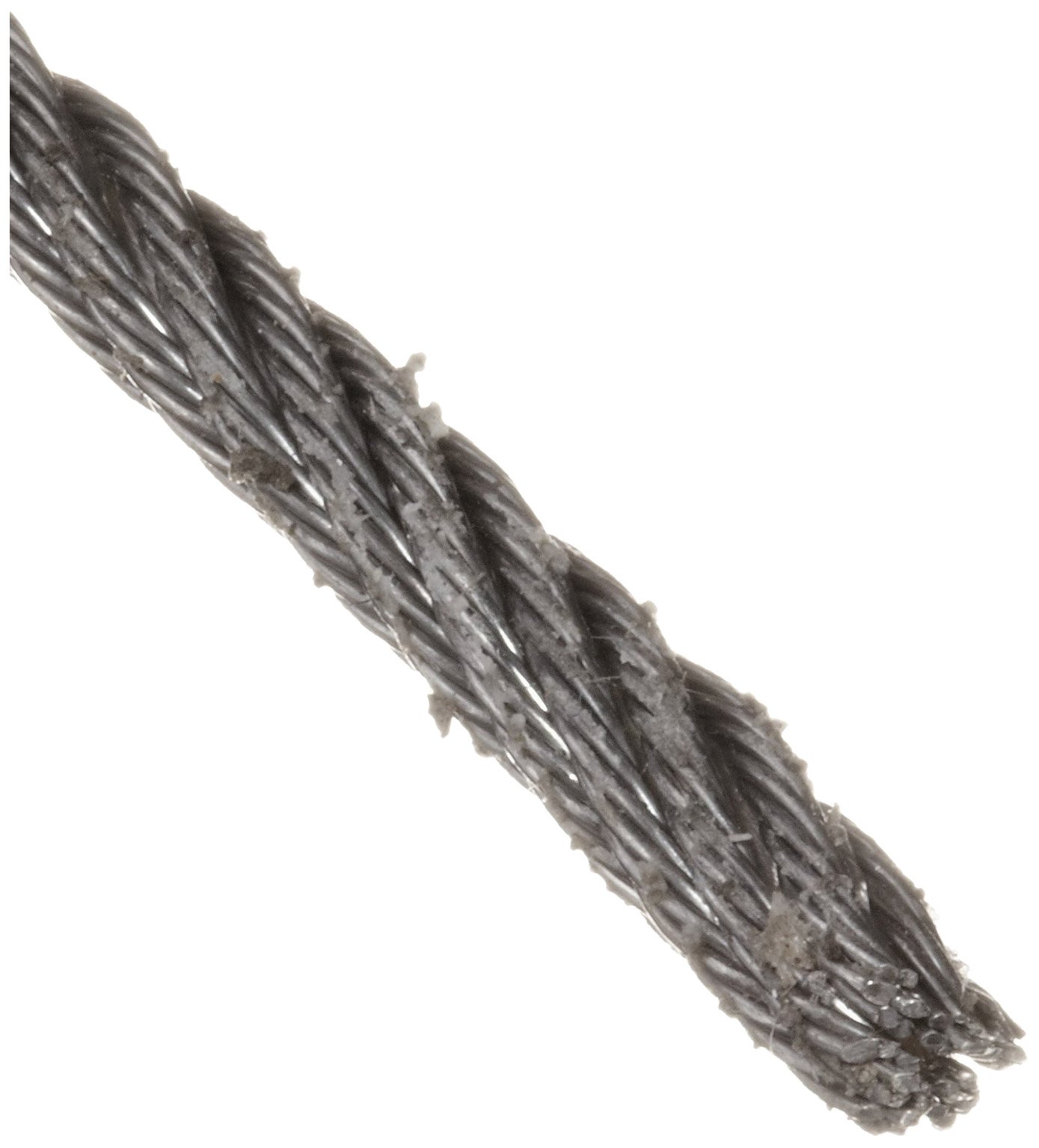

Galvanized Iron Wire Rope, 1/8" OD, 250' Length, 500 lbs Breaking Strength
Key Features
- Galvanized iron is coated with a thin layer of zinc that protects underlying material from corrosion and provides rust resistance
- Galvanized iron remains ductile over long work periods, and usually has a higher breaking strength than stainless steel
- 6x7 fiber core has six strands of wire rope with three to fourteen wires in each strand, of which no more than nine are outside wires, and they are formed helically around a fiber core
- 6x7 fiber core is a flexible, standard construction wire rope
- Can be used for sand lines, or swabbing in drilling applications
Package Details
Shipping Weight: 6.79 pounds
Product Description
Wire rope with 6x7 standard construction and a fiber core, also called sash cord, is commonly used for sand lines, or swabbing in drilling applications. Galvanized iron wire rope is coated with a thin layer of zinc that protects underlying material from corrosion and provides rust resistance. This strong material remains ductile over long work periods, and has a higher breaking strength than stainless steel. 6x7 fiber core wire rope has six strands of wire rope with three to fourteen wires in each strand, of which no more than nine are outside wires, and they are formed helically around a fiber core. 6x7 fiber core is a flexible, standard construction wire rope.
Wire rope, also called wire cable, is an assembly of wire strands formed helically around a central core. It is used for pulling, lifting, rigging, hoisting, and motion-control applications most commonly found in the manufacturing, marine, oil, mining, fiber-optics, aircraft, automotive accessory, and construction industries. A combination of characteristics including material, finish, construction, diameter, length, and breaking strength combines to give each rope its performance ability. Wire rope materials are selected for properties such as strength, elasticity, conductivity, and chemical- and weather-resistance. For strength purposes, most wire rope is made of bright (uncoated or bare) wire. However, it is also produced in a variety of finishes, such as polypropylene (PE), vinyl (PVC), or nylon. These coatings can increase overall durability and strength, and allow for specific use. The breaking strength for wire rope is the strength at which new wire rope will fail under a stationary load. Breaking strength is not considered safe working load (SWL) limit.
