Galvanized Steel Vinyl Coated Wire Rope 7x19 Standard Construction Natural Color
Be the first to review this item
ASIN B0013HIC4U
Product Specifications
- Breaking Strength
- 4200 pounds
- Diameter
- 5/16 inches
- Exterior Finish
- Vinyl Coated
- Length
- 100 feet
- Material Type
- Steel
- Standard Construction
- 7x19
- System of Measurement
- Inch
Specification for this product family (See all products)
- Brand Name
- Small Parts
- Part Number
- 123
- Number of Items
- 1
Currently unavailable. We don't know when or if this item will be back in stock.
This item is no longer available
Galvanized Steel Vinyl Coated Wire Rope, 3/16" Cable Diameter, 100' Length, 4200 lbs Breaking Strength, 5/16" Coated Outside Diameter, Natural
Key Features
- Natural-colored wire rope for ease of recognition
- Galvanized steel is coated with a thin layer of zinc that protects underlying material from corrosion and provides rust resistance
- Galvanized steel remains ductile over long work periods, and usually has a higher breaking strength than stainless steel
- Vinyl [Polyvinyl Chloride (PVC)]-coating is a hard, durable plastic that resists most chemicals and has excellent dimensional stability for ease of operation
- 7x19 strand core is more flexible and fatigue-resistant than 7x7 class construction
Package Details
Shipping Weight: 9.13 pounds
Product Description

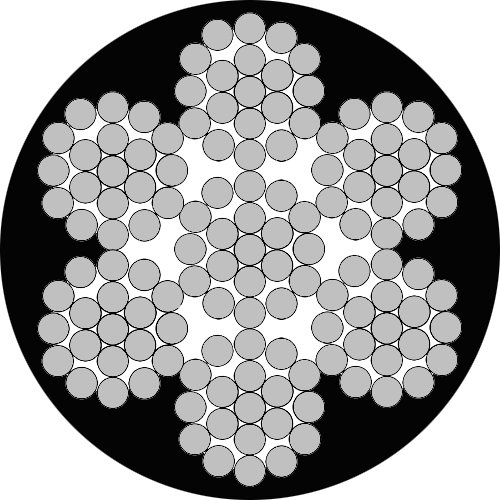

Galvanized steel vinyl-coated wire rope with 7x19 standard construction can be used over pulleys, rigging, winches, in exercise equipment, and garage door mechanics. This wire rope has a natural hue for ease of recognition. Galvanized steel wire rope is coated with a thin layer of zinc that protects underlying material from corrosion and provides rust resistance. This strong material remains ductile over long work periods, and has a higher breaking strength than stainless steel. Vinyl, also called Polyvinyl Chloride (PVC), is corrosion-resistant, lightweight, and has high strength. It resists reactions with acids, gasoline, alcohol, and hydrocarbons. It is flexible, and is resistant to weather and ultra-violet (UV) rays. Vinyl coating is a hard, durable plastic that resists most chemicals, has excellent dimensional stability, and can be sterilized. It resists oil, absorbs low levels of moisture, and is non-conductive. 7x19 strand core has seven strands of wire rope with nineteen wires in each strand formed helically around a strand core. 7x19 strand core is more flexible and fatigue-resistant than 7x7 class construction.
Wire rope, also called wire cable, is an assembly of wire strands formed helically around a central core. It is used for pulling, lifting, rigging, hoisting, and motion-control applications most commonly found in the manufacturing, marine, oil, mining, fiber-optics, aircraft, automotive accessory, and construction industries. A combination of characteristics including material, finish, construction, diameter, length, and breaking strength combines to give each rope its performance ability. Wire rope materials are selected for properties such as strength, elasticity, conductivity, and chemical- and weather-resistance. For strength purposes, most wire rope is made of bright (uncoated or bare) wire. However, it is also produced in a variety of finishes, such as polypropylene (PE), vinyl (PVC), or nylon. These coatings can increase overall durability and strength, and allow for specific use. The breaking strength for wire rope is the strength at which new wire rope will fail under a stationary load. Breaking strength is not considered safe working load (SWL) limit.
